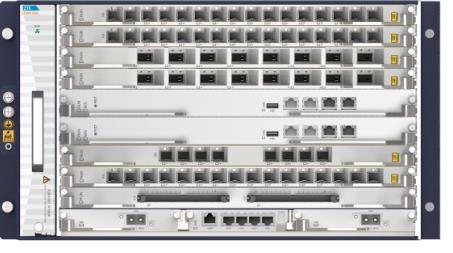

C650Request a Configuration
Medium-Capacity PON Optical Access Platform
A balanced modular platform for regional hubs and medium-scale access sites that need room to grow without a full-size chassis.
Up to 112PON ports
7Service slots
7.2 Tbit/sSwitching capacity
Key Features
Medium-capacity chassis with a compact rack footprint.
Supports GPON, XG-PON, XGS-PON, Combo PON and Any-PON service options.
Flexible service-card and uplink configuration for phased network growth.
Carrier-grade QoS, multicast, security and operational features.
Simplified Specifications
| Platform Type | Medium-capacity modular optical access platform |
| Service Slots | 7 |
| Maximum PON Ports | Up to 112, depending on configuration |
| Supported PON | GPON / XG-PON / XGS-PON / Combo PON / Any-PON |
| Switching Capacity | Up to 7.2 Tbit/s |
| Power Input | -48 V DC or -60 V DC |
| Operating Temperature | -40°C to 65°C |
| Dimensions | 263.9 × 482.6 × 285.3 mm |
Typical Deployment
Regional access hubs, medium-density FTTH networks, enterprise access, campus networks and access-site expansion projects.
Configuration Note
Final configuration depends on the selected PON service cards, uplink interfaces, redundancy plan and power input. Contact DDUTEC for professional model and configuration selection support.
