Compact 2U chassis for space-constrained deployments.
Supports GPON, XG-PON, XGS-PON, Combo PON and Any-PON service options.

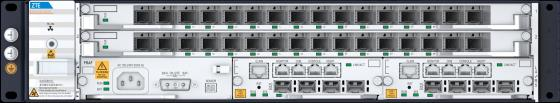

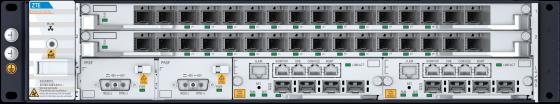

AC and DC power configurations for different installation environments.
Four 10GE/GE uplink interfaces per control card.
Simplified Specifications
Platform Type
Compact 2U optical access platform
Service Slots
2
Maximum PON Ports
Up to 32, depending on configuration
Supported PON
GPON / XG-PON / XGS-PON / Combo PON / Any-PON
Switching Capacity
Up to 480 Gbit/s
Uplink
4 × 10GE/GE per control card
Power Input
100–240 V AC or -48/-60 V DC
Operating Temperature
-40°C to 65°C
Dimensions
88.1 × 482.6 × 283.5 mm
Typical Deployment
Compact central offices, branch sites, distributed access, enterprise and campus networks, and lower-density FTTH deployments.
Configuration Note
Final configuration depends on the selected PON service cards, uplink interfaces, redundancy plan and power input. Contact DDUTEC for professional model and configuration selection support.
