C600Request a Configuration

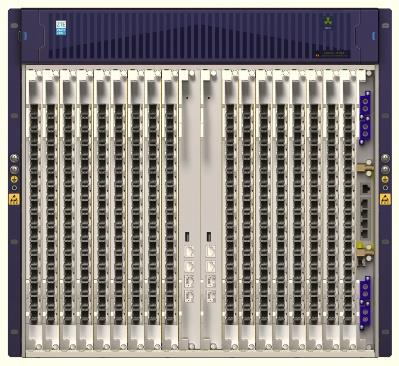

Large-Capacity PON Optical Access Platform
A high-density modular platform for large central offices, metro access networks and service-rich fiber deployments.
Up to 272PON ports
15 / 17Service slots
7.2 Tbit/sSwitching capacity
Key Features
High-density modular chassis for large-scale access networks.
Supports GPON, XG-PON, XGS-PON, Combo PON and Any-PON service options.
Separate control and forwarding design with redundancy options.
Suitable for broadband, enterprise access, mobile transport and converged services.
Simplified Specifications
| Platform Type | Large-capacity modular optical access platform |
| Service Slots | 15 or 17, depending on chassis |
| Maximum PON Ports | Up to 272, depending on configuration |
| Supported PON | GPON / XG-PON / XGS-PON / Combo PON / Any-PON |
| Switching Capacity | Up to 7.2 Tbit/s |
| Power Input | -48 V DC or -60 V DC |
| Operating Temperature | -40°C to 65°C |
| Installation | 19-inch or 21-inch rack |
Typical Deployment
Large central offices, high-density FTTH networks, converged broadband access, enterprise aggregation and metro access nodes.
Configuration Note
Final configuration depends on the selected PON service cards, uplink interfaces, redundancy plan and power input. Contact DDUTEC for professional model and configuration selection support.
