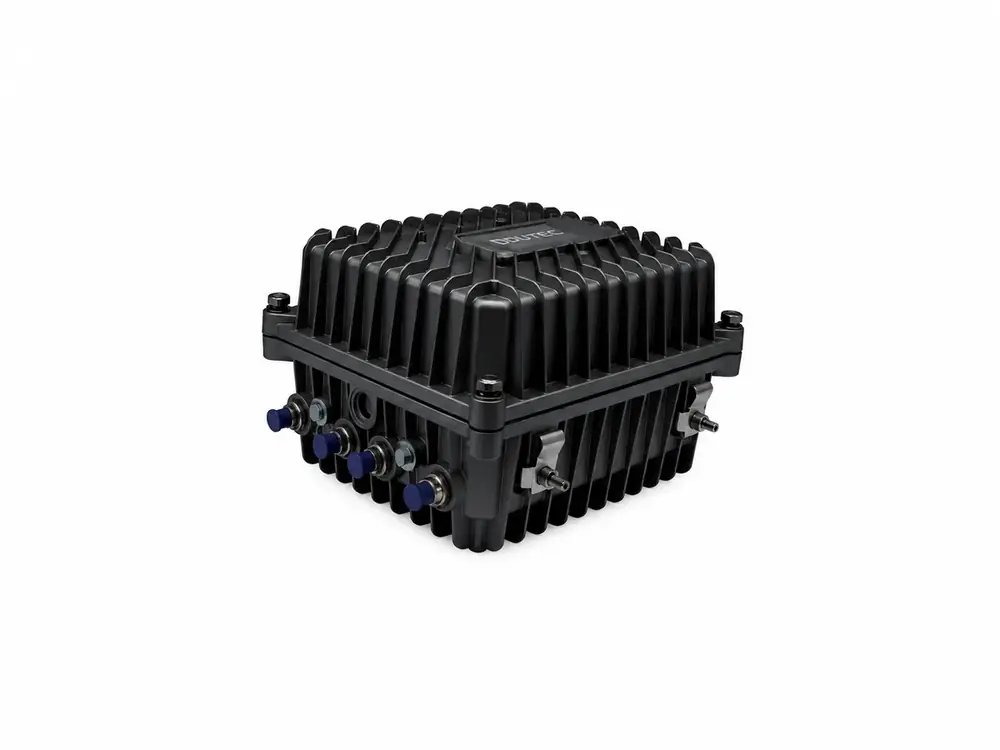

Outdoor 2/4-Output Optical Receiver
DDU-OLR2200 / DDU-OLR2400 · Optical Communication Equipment
DDU-OLR2200 / DDU-OLR2400
An outdoor optical receiver family with two- and four-output options for HFC, FTTB and FTTC networks.
Request a QuoteKey Features
2-output and 4-output outdoor versions
Die-cast aluminum enclosure
1200-1620nm optical operating range
Optical AGC for stable output
Adjustable RF output and slope
Optional SNMP management
Technical Specifications
| Models | DDU-OLR2200 (2 outputs) / DDU-OLR2400 (4 outputs) |
| Operating wavelength | 1200-1620 nm |
| Optical AGC range | -7 to +2 dBm |
| Operating mode | Optical AGC |
| Operating bandwidth | 47-1002 MHz |
| RF output level | Up to 110 dBµV |
| ATT adjustment | 0-18 dB |
| EQ adjustment | 0-15 dB |
| Optical return loss | 45 dB |
| Operating temperature | -40 to +65 °C |
Main Applications
Outdoor HFC nodes
FTTB / FTTC networks
CATV distribution
Fiber-deep network upgrades
Selection Support
Final configuration should be confirmed according to optical wavelength plan, input/output power, connector type, number of ports, RF requirements, network-management interface and installation environment. Contact DDUTEC for model confirmation before ordering.
Ordering, warranty and delivery
1-year warranty
Confirm the warranty scope and service procedure in your quotation.
Stock availability
Regular models are available from stock. Confirm the exact model and current stock with sales before ordering.
Factory dispatch
Production through factory dispatch typically takes about one week, subject to confirmation for your specific order.
Shipping time is additional
Transit time depends on the shipping method and destination. Shipping is arranged according to customer requirements; confirm the method and estimate with sales.
Support in your language
We can communicate in your language and help confirm specifications and order details before purchase.
