FTTB Optical Receiver

DDU-OLR1400 · Optical Communication Equipment

← Back to Optical Communication Equipment

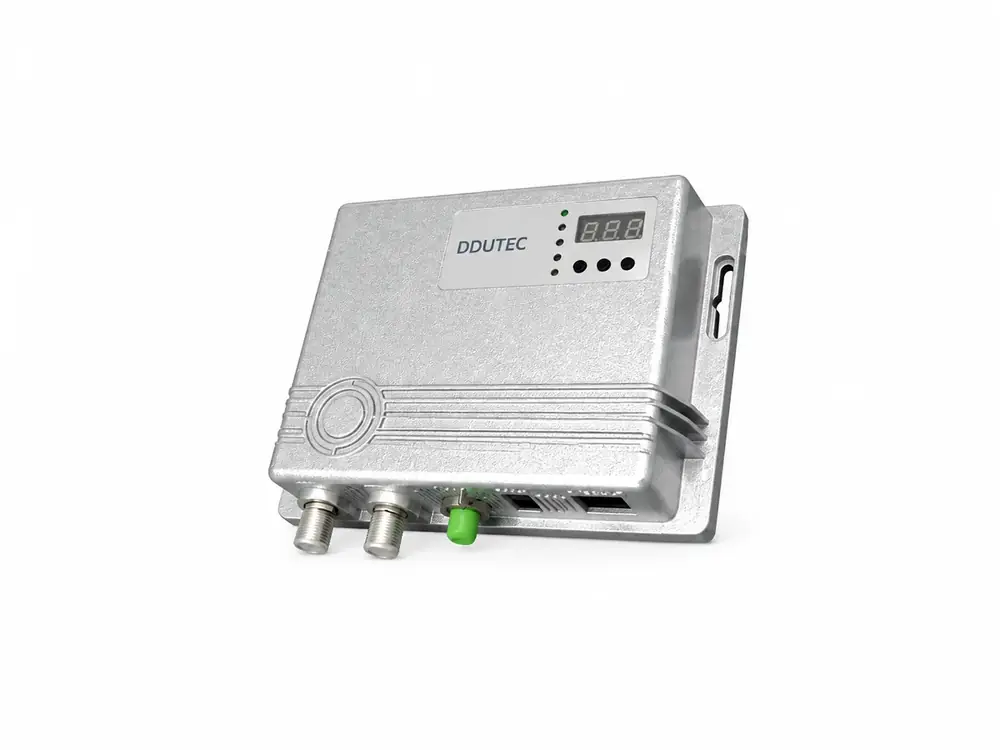

DDU-OLR1400

A compact FTTB optical receiver designed for building-level CATV distribution.

Request a Quote

Key Features

Compact FTTB/FTTC receiver design

1200-1620nm optical operating range

Optical AGC control

Adjustable attenuation and equalization

High gain and low distortion

Optional SNMP network management

Technical Specifications

Operating wavelength1200-1620 nm
Optical AGC range-8 to +2 dBm
Operating modeOptical AGC
Operating bandwidth47-1002 MHz
RF output level98-104 dBµV
ATT adjustment0-20 dB
EQ adjustment0-10 dB
RF outputs2
Optical return loss45 dB
Operating temperature-40 to +65 °C
Dimensions182 × 125 × 36 mm

Main Applications

FTTB networks

FTTC deployments

Building CATV distribution

HFC fiber-deep upgrades

Selection Support

Final configuration should be confirmed according to optical wavelength plan, input/output power, connector type, number of ports, RF requirements, network-management interface and installation environment. Contact DDUTEC for model confirmation before ordering.

Ordering, warranty and delivery

1-year warranty

Confirm the warranty scope and service procedure in your quotation.

Stock availability

Regular models are available from stock. Confirm the exact model and current stock with sales before ordering.

Factory dispatch

Production through factory dispatch typically takes about one week, subject to confirmation for your specific order.

Shipping time is additional

Transit time depends on the shipping method and destination. Shipping is arranged according to customer requirements; confirm the method and estimate with sales.

Support in your language

We can communicate in your language and help confirm specifications and order details before purchase.
