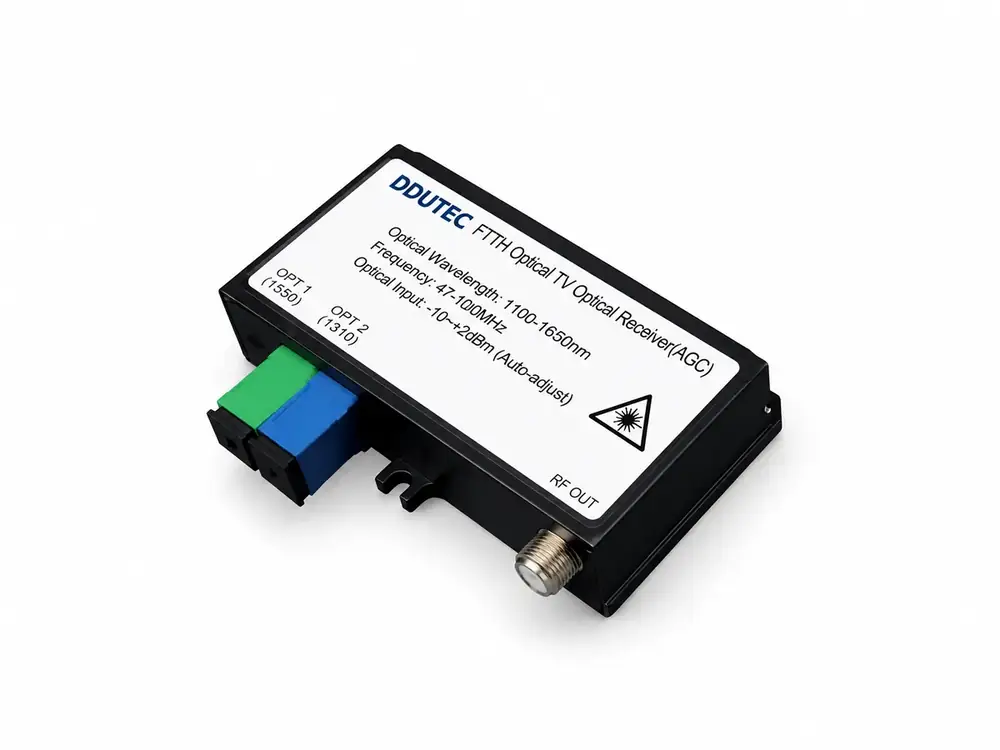

DDU-OLR1300C
A compact FTTH/FTTB optical receiver with integrated WDM and high RF output.
Request a QuoteKey Features
Integrated WDM for CATV + PON coexistence
High-sensitivity O/E conversion
High RF output level up to 95 dBµV
Optical AGC control
Adjustable RF attenuation
Metal enclosure for stable operation
Technical Specifications
| CATV operating wavelength | 1540-1563 nm |
| COM wavelengths | 1310 / 1490 / 1550 nm |
| PON pass wavelengths | 1310 / 1490 nm |
| Channel isolation | 40 dB |
| Optical input range | -20 to +2 dBm |
| AGC control range | -12 to -2 dBm |
| Operating bandwidth | 47-1002 MHz |
| RF output level | 95 dBµV |
| ATT adjustment | 0-20 dB |
| RF outputs | 1 or 2 |
| Power supply | +5 V DC |
| Dimensions | 90 × 85 × 25 mm |
Main Applications
FTTH / FTTB / FTTC networks
PON + 1550nm CATV overlay
Building coaxial distribution after fiber termination
Triple-play access networks
Selection Support
Final configuration should be confirmed according to optical wavelength plan, input/output power, connector type, number of ports, RF requirements, network-management interface and installation environment. Contact DDUTEC for model confirmation before ordering.
