FTTH Drop Fiber Cable

Outdoor 2-core FTTH drop fiber cable designed for indoor and outdoor installations. Lightweight structure, excellent bending performance, and stable transmission make it ideal for FTTH access networks.

Request a Quote

Product Features

FTTH Optimized

Designed specifically for FTTH indoor and outdoor deployment.

Flexible Structure

Excellent bending radius for easier installation in narrow spaces.

Stable Transmission

Low attenuation ensures reliable signal performance.

Durable Protection

LSZH sheath provides safety and long service life.

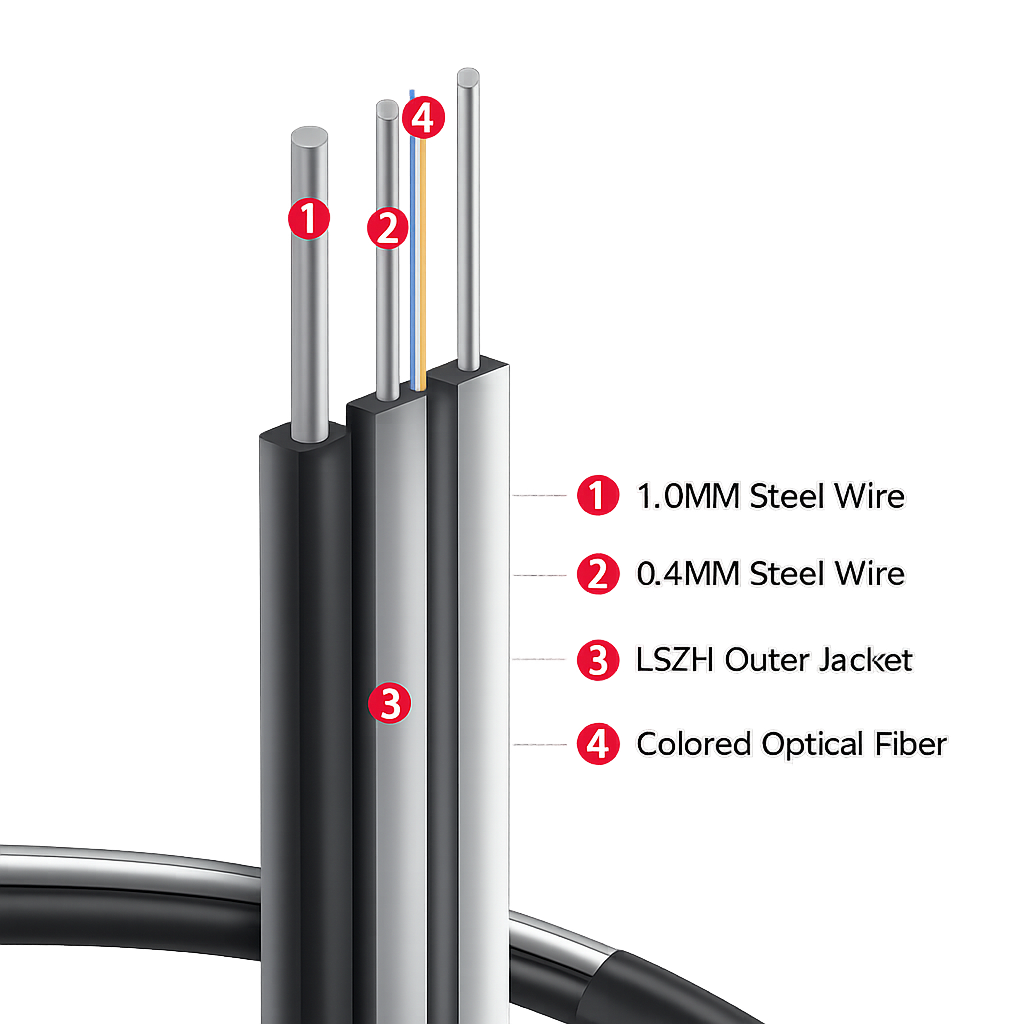

Technical Specifications

Product Name	Outdoor 2-Core Drop Fiber Cable
Outer Jacket	LSZH Sheath
Fiber Attenuation	1310nm ≤ 0.36 dB/km / 1550nm ≤ 0.22 dB/km
Temperature Range	-40°C to +70°C
Allowable Tensile Force	Long-term: 500N / Short-term: 800N
Crush Resistance	800 times, H = 1m
Strength Member	1mm Phosphorized Steel Wire
Installation Method	FTTH Indoor Installation
Weight	1000m / 20kg
Fiber Material	G657A / G652D
